TD-450 (Top Drive)
Portable Auger
Standard Features
- 6″, 8″, 10″, 12″ and 14″ diameter tubes
- Painted finish available in all sizes
- Galvanized tube finish available on sizes 6″, 8″, 10″
- A-frame transport with manual winch
- Hydraulic winch; 12” & 14″ augers
- PTO, electric, gas, and hydraulic drives
Capacities
| 6″ Augers | 1,200-1,400 BPH |
| 8″ Augers | 2,100-2,400 BPH |
| 10″ Augers | 3,200-3,600 BPH |
| 12″ Augers | 5,000-5,400 BPH |
| 14″ Augers | 10,000-11,000 BPH |
Specifications
| 6″ Augers | 8″ Augers | 10″ Augers | 12″ Augers | 14″ Augers | |
|---|---|---|---|---|---|
| Tube Gauge | 14 ga. | 14 ga. | 12 ga. | 12 ga. | 12 ga. |
| Finish | Painted or Galv. | Painted or Galv. | Painted or Galv. | Painted | Painted |
| Flight Ga.* | 10 ga. | 3/16″ | 3/16″ | 1/4″ | 5/16″ |
| Tube ID | 1″ | 1½” | 2½” | 2 7⁄8″ | 2 7⁄8″ |
| Driveshaft Diameter | 1″ | 1″ | 1¼” | 1¼” | 1¼” |
| Head Chain | Single #50 (all lengths) |
Single #60 (all lengths) |
Single #80 (all lengths) |
Single #80 (31′-41′)Double #80 (51′-71′) |
Double #80 (31′-41′)Belt Drive (51′-86′) |
| Gearbox** Shaft Diameter | 1¼” | 1¼” | 1¼” | 1¼” (31′-41′) 1½” (51′-71′) |
1½” |
| Transport Arms | 1 7⁄8″ round tube (26′-36′)
2″ x 4″ box upper & 2″ x 3″ box lower (41′-71′) |
1 7⁄8″ round tube (26′-36′)
2″ x 4″ box upper & 2″ x 3″ box lower (41′-71′) |
17⁄8″ round tube (26′-36′)
2″ x 4″ box upper & 2″ x 3″ box lower (41′-71′) |
2″ x 4″ box upper & 2″ x 3″ box lower (all lengths) |
2″ x 4″ box upper & 2″ x 3″ box lower (all lengths) |
| Transport Width | 7’8″ (26′-41′)
10′ (51′-71′) |
7’8″ (26′-41′)
10′ (51′-71′) |
7’8″ (26′-41′)
10′ (51′-71′) |
7’8″ (31′-41′)
10′ (51′-71′) |
7’8″ (31′-41′)
10’*** (51′-86′) |
* Intakes on all augers are double flighted.
** Gearbox is a right angle type, with miter cut gears and 1:1 ratio.
*** Axles extend to 13′ for loading grain
HOPPER DIMENSIONS (17° OR HINGED)
| Tube Dia. | Length | Width | Depth |
|---|---|---|---|
| 8″ | 28″ | 27″ | 10″ |
| 10″ | 32½” | 26½” | 11¾” |
| 12″ | 32½” | 26½” | 13″ |
| 14″ | 38½” | 32″ | 15″ |
RECOMMENDED HORSEPOWER (CALCULATED AT 40° AUGER INCLINE)
* First HP is for dry corn. Second HP is for slow down kit.
** Calculated assuming tractor hydraulics put out 14 GPM (determines auger RPM) and maximum of 1800 PSI for H series motors. Also assuming 14 GPM (determines auger RPM) for the 2000 series but with a maximum of 3000 PSI.
Reach and Elevation
| Auger Length | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 26′ | 31′ | 36′ | 41′ | 51′ | 56′ | 61′ | 66′ | 71′ | |
| A – Elevation | 16′ | 19′ | 23′ | 26′ | 31′ | 35′ | 38′ | 41′ | 44′ |
| B – Reach | 7′ | 10′ | 11′ | 14′ | 15′ | 18′ | 20′ | 21′ | 24′ |
| C – Height | 12′ | 13′ | 15′ | 16′ | 20′ | 21′ | 23′ | 25′ | 26′ |
| D – Distance | 14′ | 15′ | 17′ | 18′ | 25′ | 26′ | 28′ | 30′ | 31′ |
Options
- 17° or hinged hopper with removable hitch
- Swivel transport

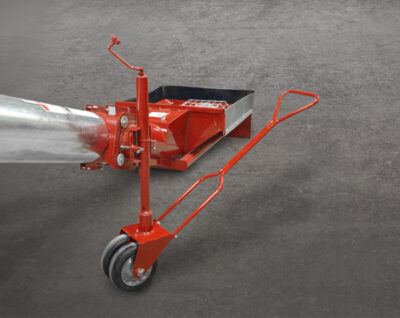

- Wheeled jack
- Plastic hopper
- Hydraulic winch for 8” & 10” auger
