Feed / Bulk Bag Stands

Specifications
Photos
Installations

Bulk Bag Stands

General Info

Add ultimate versatility to your feed system using Sudenga’s bulk bag stands. Two-piece design allows bag replacement at ground level. Unload in a variety of ways including rigid augers, flex augers, chain loop, etc.

STANDARD FEATURES

Versatile design allows for a variety of applications.

Operated by existing feed mill controls, whether automated or manual.

Two-piece design allows bag replacement at ground level for safer, simpler bulk bag handling.

Suitable for major, minor, and micro ingredient storage.

Can be adapted to a variety of discharge conveyor systems, including rigid augers or flex augers.

Dimensions
A (min.)		A (max.)	B	C	D	E (min.)	E (max.)	F	G	H	I (min.)	I (max.)
Inches	127-1/4″	175-1/4″	30″	12″	60″	71-1/4″	119-1/4″	63″	66″	16″	52-3/4″	100-3/4″
Centimeters	324	446	76.2	2.54	152.4	181	303	160	168	40.6	134	256

Detail view of winch style bulk bag stand

Bag stands are available in a variety of configurations.

Rigid frame style bag stand with fork lift bracket.

Hog Feeding Operation near Lismore, MN

Check out this Lismore, MN farm site featuring a painted feed leg, micro skid, weigh hopper, mixer, tote bag system, and loop system.

Read More

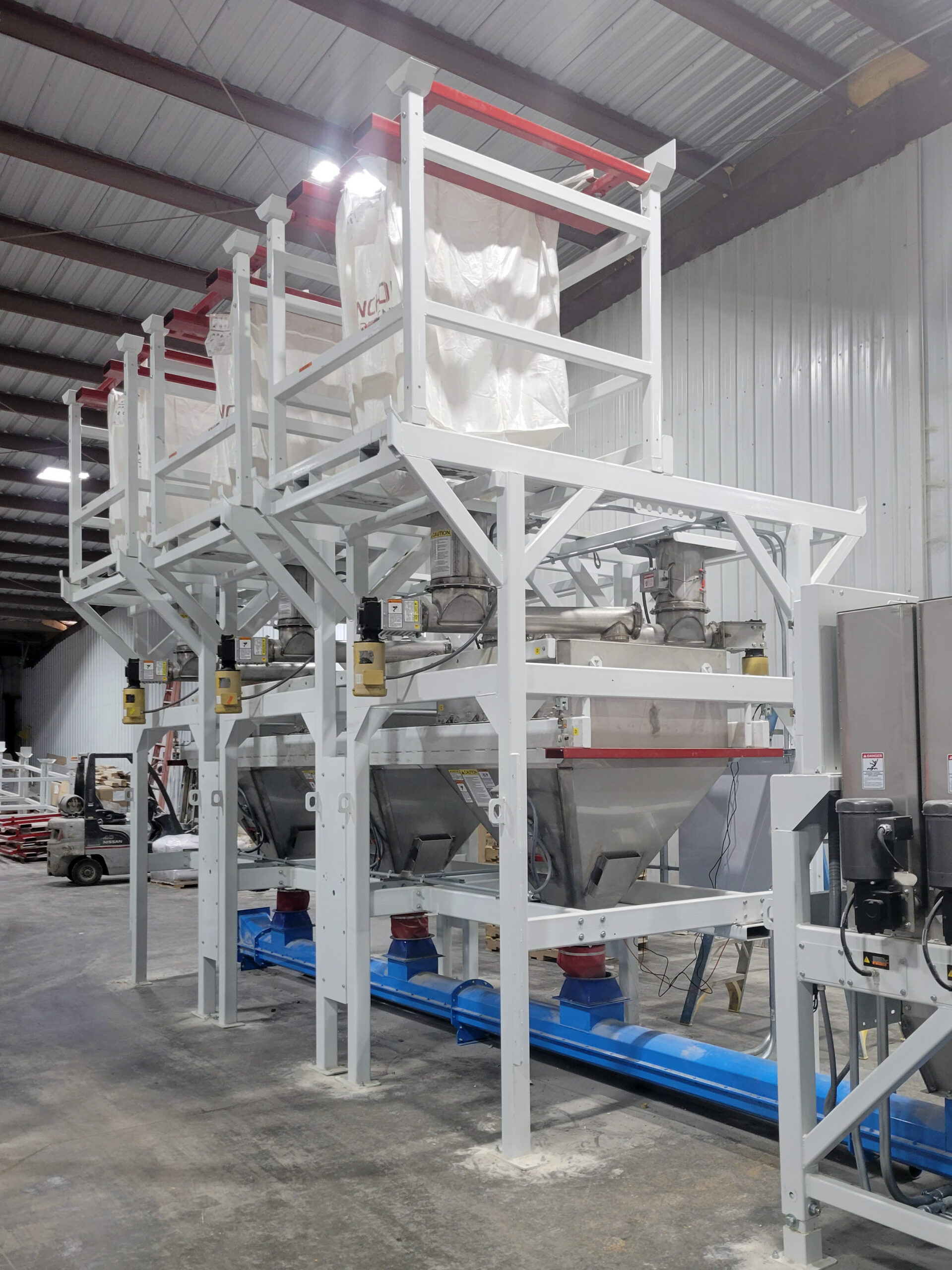

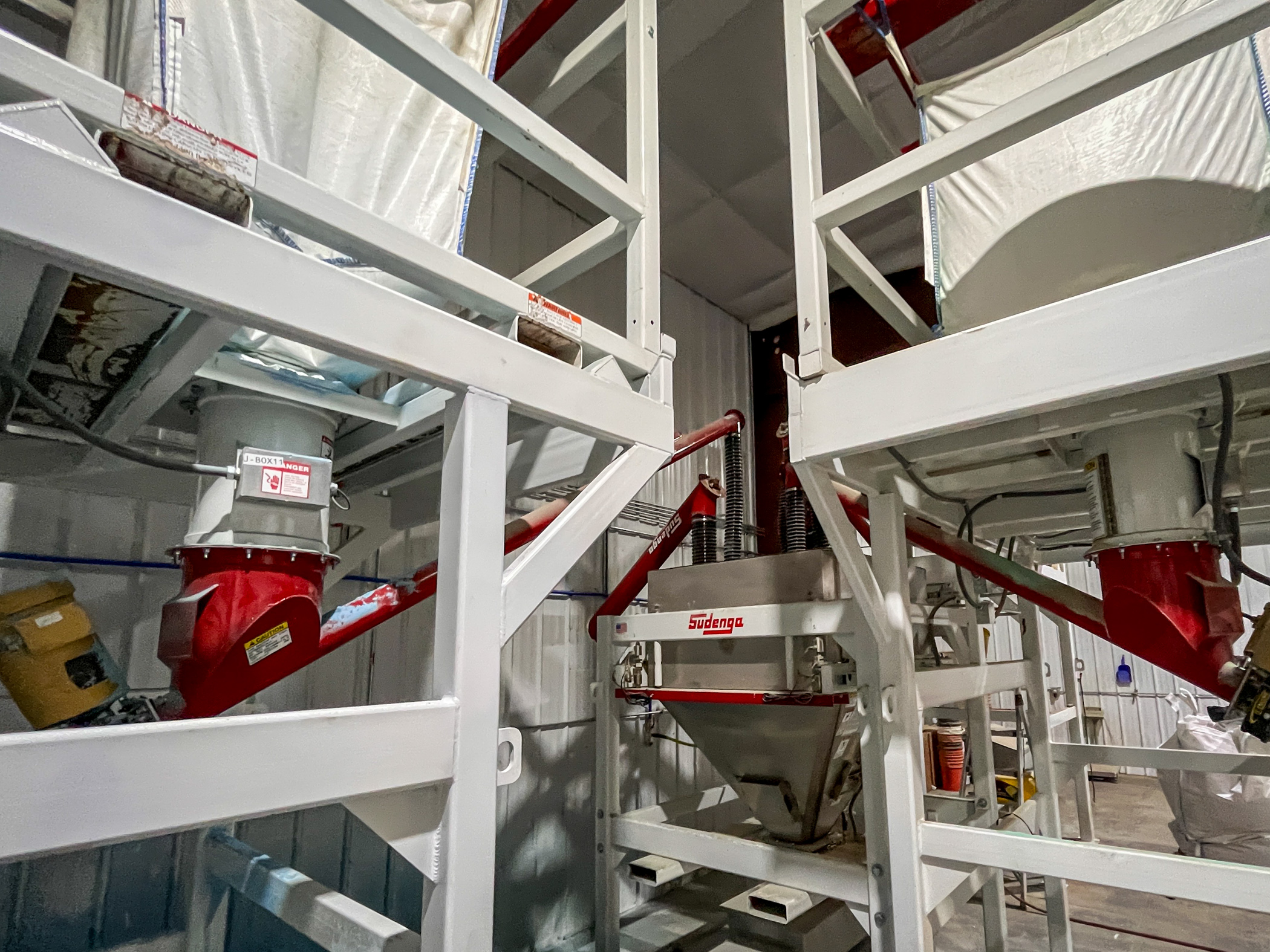

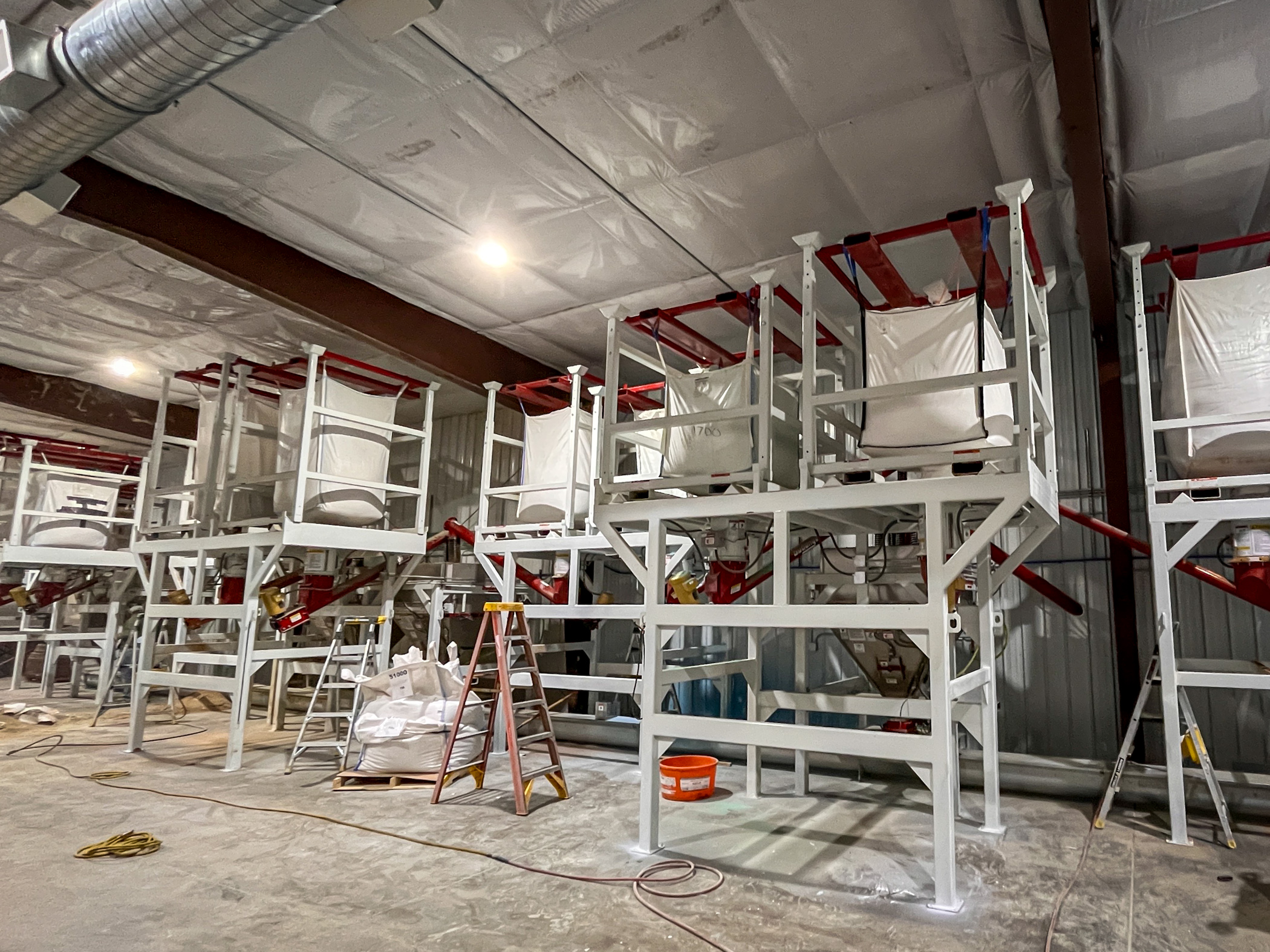

Commercial Tote System

Check out this commercial tote bag system. Designed to handle major, minor, and micro ingredients. Cage style system allows for moving tote bags with a lower center of gravity.

Read More
