Ultra Scoop (20,000 BPH)

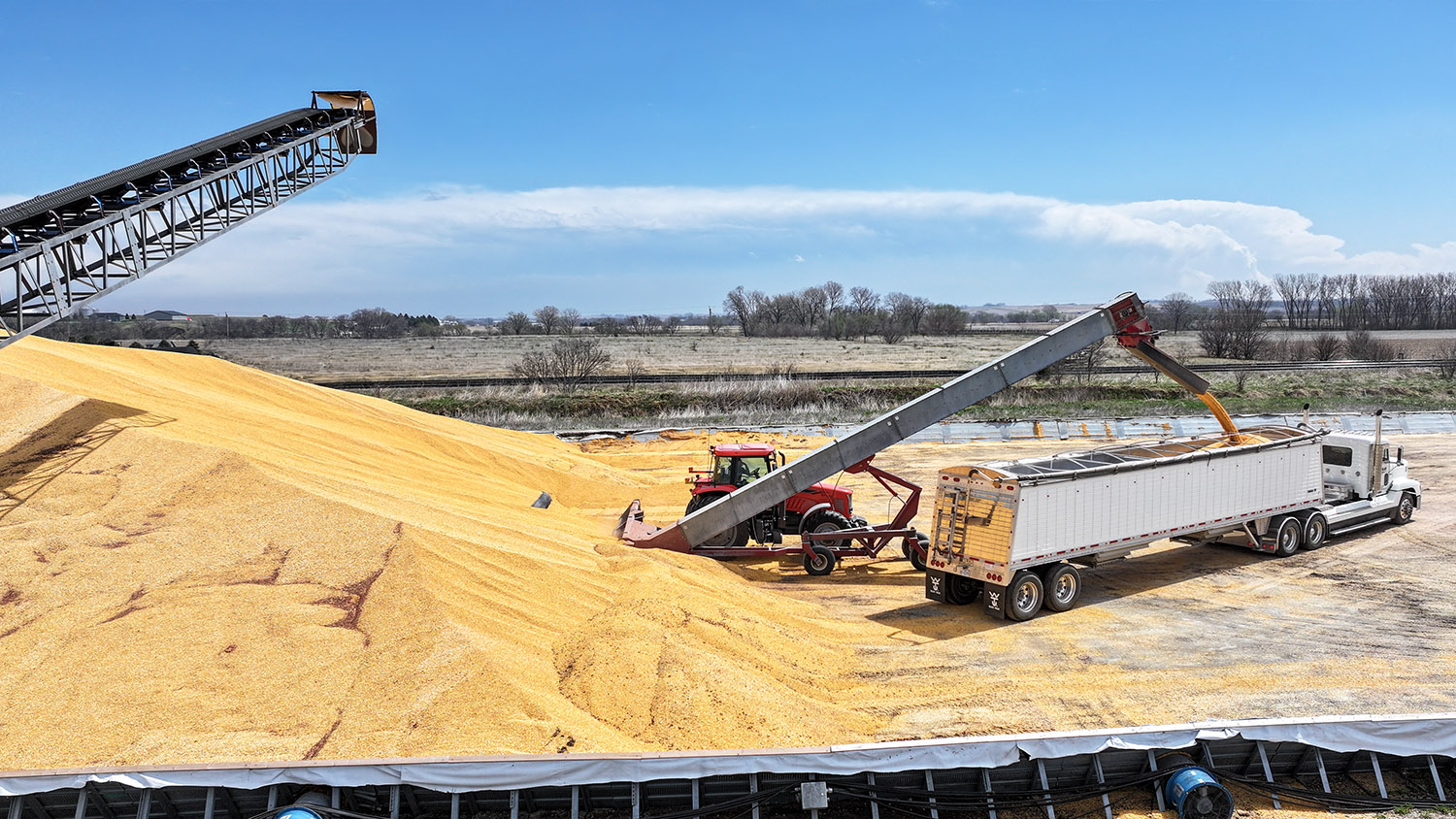

Load a typical grain trailer from your flat storage pile in as little as 3 minutes with the 20,000 BPH Ultra Scoop. This high-capacity model fits most tractors, but we recommend mounting on 150+ HP tractors for this 16 foot by 16 inch horizontal pick up auger with detachable wing.

  • Specifications
  • Photos
  • Videos

Ultra Scoop

Grain Pile Pickup
GENERAL

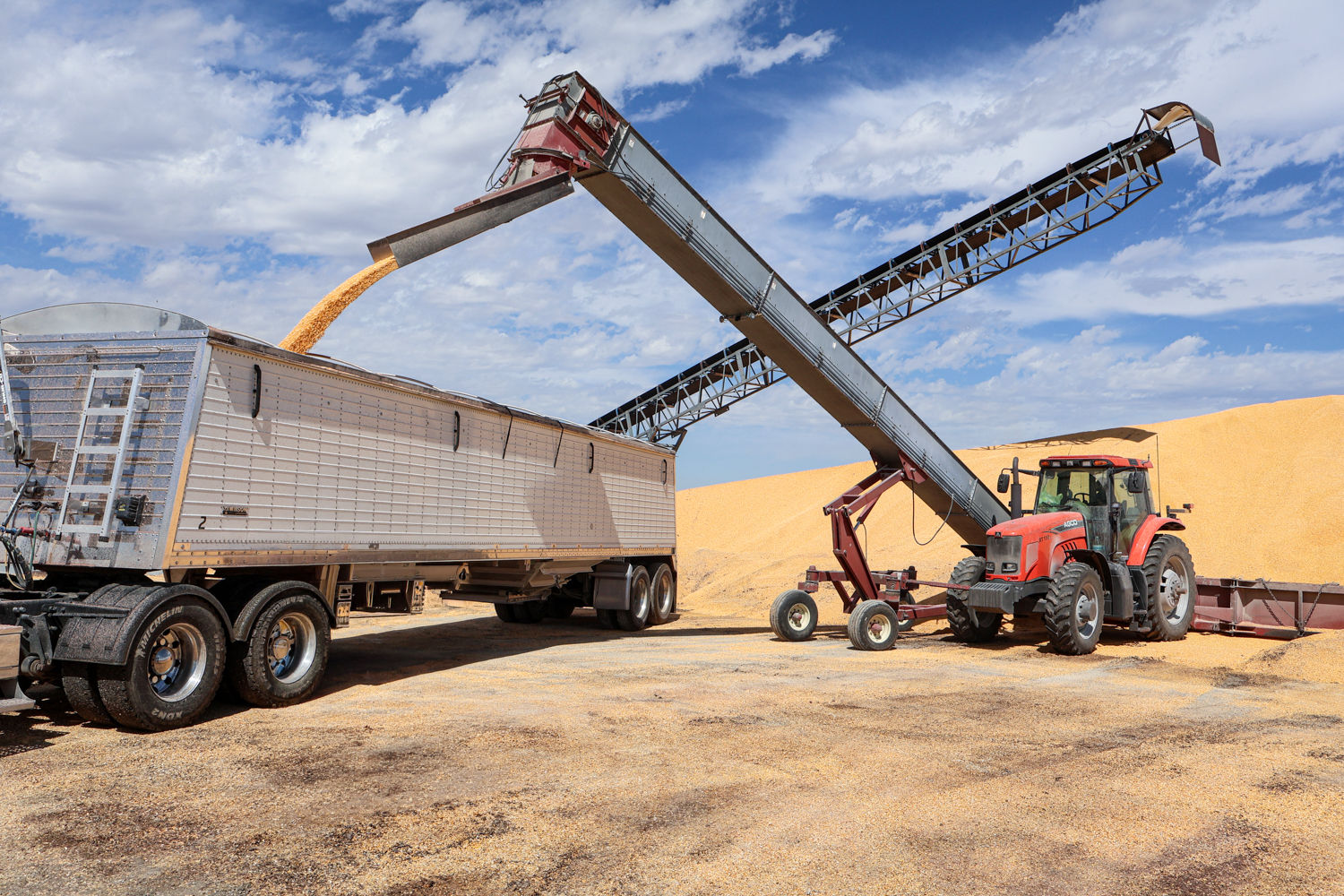

The Ultra Scoop from Sudenga features a 16 foot by 16 inch horizontal pick up auger with a six foot detachable wing. The 40 foot inclined chain conveyor has abrasion-resistant liners and heavy-duty chain to ensure long life and wear characteristics. The three-wheel transport provides an exceptionally low transport height.

STANDARD FEATURES

20,000 BPH
40′ inclined conveyor

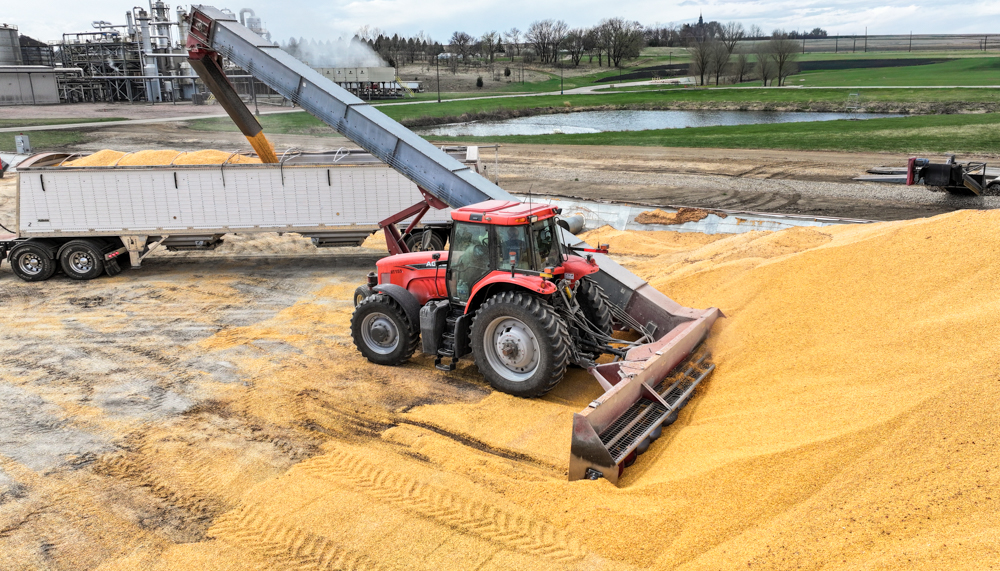

16′ wide scoop with a 6′ detachable wing that folds for legal highway transport.
Three-wheel transport provides an excep-tionally low transport height.
Easy to mount and dismount

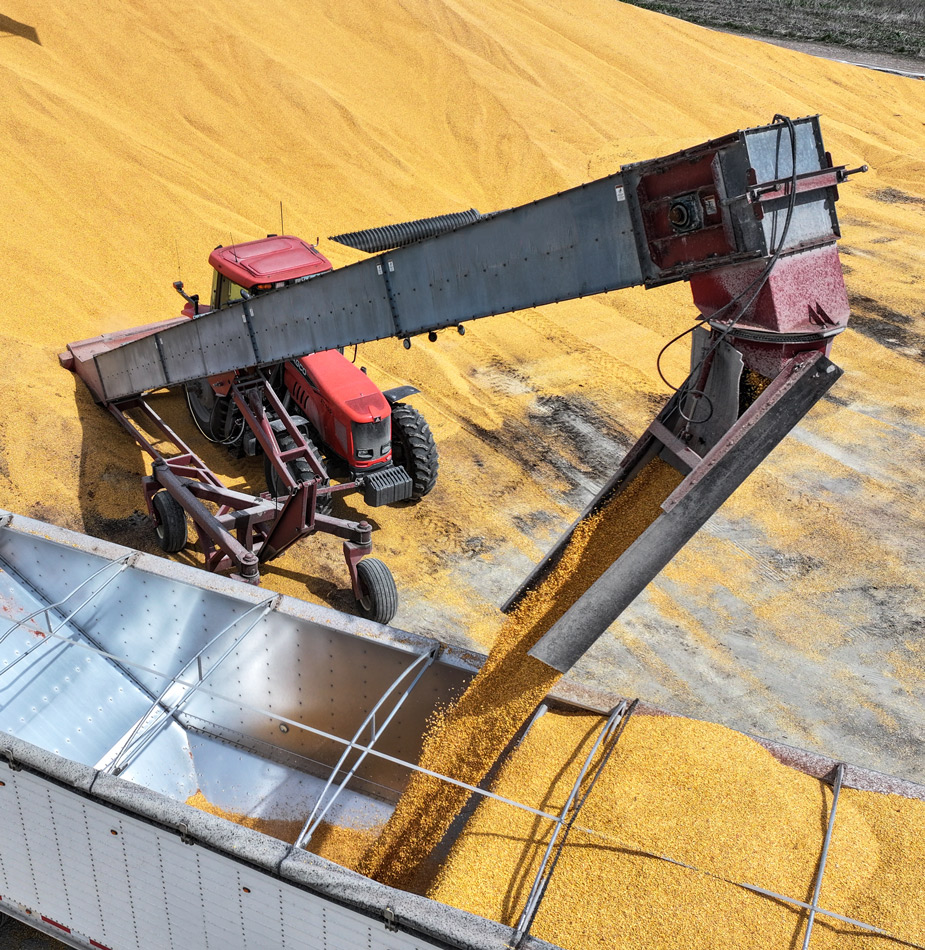

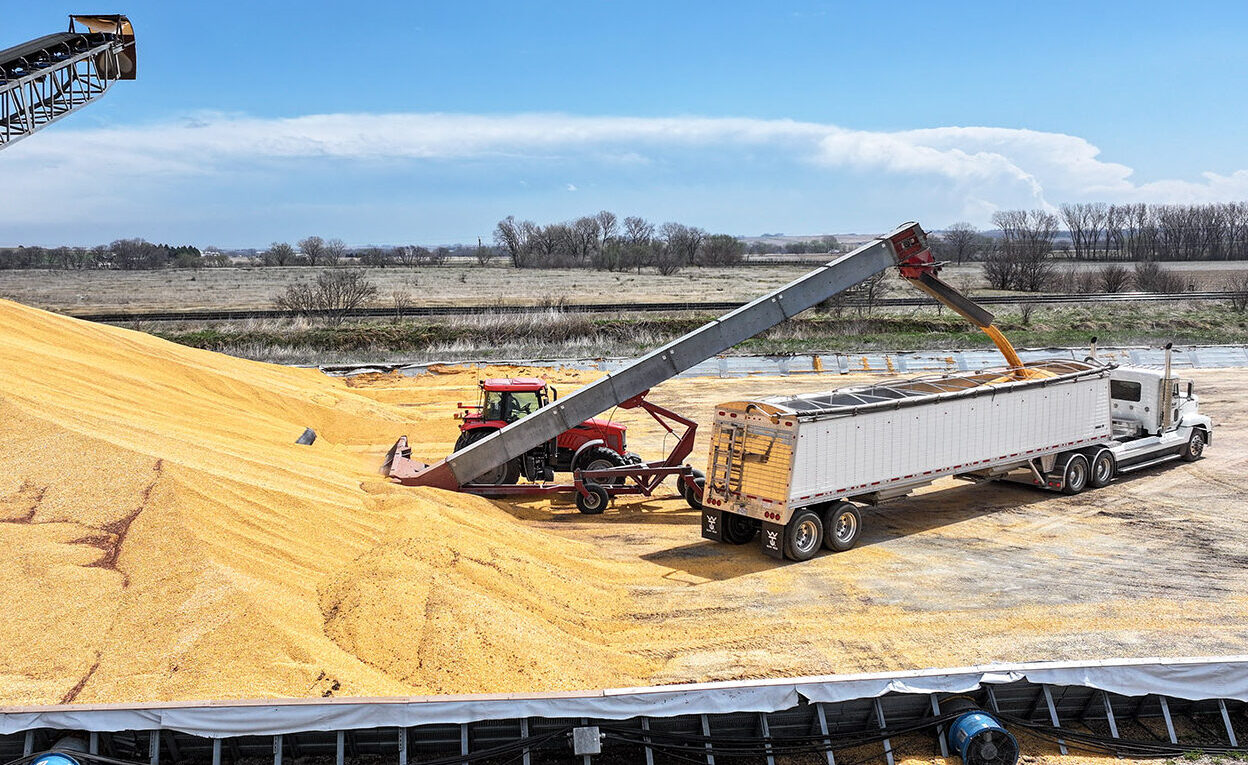

Hydraulic power raises, lowers and rotates spout
Conveyor features liners and heavy duty chain
5/16″ thick, 16″ diameter intake auger
Chain and gearbox drives designed for strength and simplicity
Fits most late model tractors with 150 HP or more; 1,000 rpm PTO

SPECIFICATIONS

Conveyor Elevations

Minimum 12° 23° Maximum 36° (shown)
A- Overall Height 12′-7″ 21′ -2″ 30′-3″
B- Discharge Height 14′-1″ – 10′ 25′ – 20′-2″
C- Discharge Reach 27′-5″ – 23′-3″ 23′-7″ – 20′-5″
D- Secondary Height 10′-10″ 16′-10″
E- Overall Length 50′-3″ 53′-9″ – 49′-8″ 49′-5″ – 46′-3″

Where two dimensions are given at 23° and 36°, the first is with the spout raised (as shown).
The second is with the spout at the lowest angle.
With the minimum 12°, the overall length is with the spout rotated back under the conveyor.

Testimonial

“I have run over 100 million bushels and counting through it. The Ultra Scoop has not only impressed me, but my customers as well, with the speed in which we can pick up grain.” READ MORE
