HOSS

Portable Auger

Standard Features

8”, 10” and 13” diameter tubes
8” and 10” galvanized or painted finish; 13” painted finish
Hydraulic cylinder scissor lift
Heavy duty top and side cable trussing (8” and 10”); rigid bridge top truss and cable side truss (13”)
Capacities to 11,000 bushels per hour
Large, low profile, auger hopper. Single hopper (8”/10”); Twin screw hopper (10”/13”)
Lengths available from 57’ to 112’
Low transport height (under 14’) and width
Twin cylinder hydraulic scissor lift (13” only)
Narrow transport width features convenient extendable axles (13” only. 92’-112’ models)

Capacities

8″ Diameter	3,200 BPH
10″ Diameter	7,000 BPH
13″ Diameter	11,000 BPH

Specifications

	8″ Augers	10″ Augers	13″ Augers
Tube Length	57′, 61′, 65′, 71′	61′, 66′, 71′, 76′, 81′	72′, 82′, 92’, 102’, 112’
Tube Gauge	14 ga.	12 ga.	12 ga.
Tube Finish	Painted or galv.	Painted or galv.	Painted
Flighting	3/16″	3/16″ UltraFlyte	1/4″ UltraFlyte

Driveline: Direct constant velocity joint on PTO-to-flighting connection; shear pin protection

Transport: Hydraulic scissor lift; 4-bolt rims (8” augers), 6-bolt rims (10” all sizes/13” 72’-82’ augers), 8-bolt rims (13’’ 92’-112’ augers); roller bearings for road transport. Transport widths: 10′ (8” augers) and 10½’ (10”/13” augers). Transport height under 14’.

Swing Hopper: Mechanically driven by roller chain and double gearbox from auger flight; gimbal mount is easy to position; sealed hopper joint keeps weather out and grain in; 10” and 13” hoppers are hinged at the hopper to incline joint. CV joint is standard on 10” and 13”. Hopper intake flighting for single screw is 5/16” (8”) and .25 UltraFlyte (10”). Flighting for twin screw is 3/8” thick (10”/13”).

Reach and Elevation

8″ AUGER

30 Degrees	57′	61′	65′	71′
A – Elevation	29′	31′	33′	36′
B – Reach	27′	31′	28′	33′
C – Height	13′	13′	16′	16′
D – Distance	25′	25′	31′	31′

40 Degrees	57′	61′	65′	71′
A – Elevation	38′	41′	43′	47′
B – Reach	23′	26′	25′	29′
C – Height	17′	17′	21′	21′
D – Distance	23′	23′	27′	27′

10″ AUGER

30 Degrees	61′	66′	71′	76′	81′
A – Elevation	31′	34′	36′	38′	41′
B – Reach	30′	28′	33′	34′	37′
C – Height	13′	16′	16′	18′	19′
D – Distance	25′	31′	31′	37′	36′

40 Degrees	61′	66′	71′	76′	81′
A – Elevation	41′	43′	47′	50′	53′
B – Reach	28′	25′	29′	30′	33′
C – Height	17′	21′	21′	23′	25′
D – Distance	23′	27′	27′	30′	31′

13″ AUGER

30 Degrees	72′	82′	92′	102′	112′
A – Elevation	37′	42′	47′	52′	57′
B – Reach	36′	41′	45′	51′	56′
C – Height	16′	18′	21′	23′	25′
D – Distance	29′	33′	38′	41′	45′

40 Degrees	72′	82′	92′	102′	112′
A – Elevation	48′	55′	61′	68′	74′
B – Reach	31′	35′	38′	44′	48′
C – Height	20′	24′	27′	30′	32′
D – Distance	27′	31′	35′	38′	41′

Swing Hopper Dimensions

	A	B	C	D	E***
8″	14′ 5-7/8″	13′ 7-11/16″	3′ 11-3/4″	2′ 5″	12.625″*
10″	18′ 9″	18′ 3″	5′ 10-3/8″	3′ 2-3/4″	11.5”* 10.0”**
13″	19′ 6″	18′ 9″	5′ 10-3/8″	3′ 2-3/4″	10.0”**

_{*Single screw hopper ** Twin screw hopper

***Height is to top of steel hopper with hopper wheels in highest position. Flexible rubber skirt adds 4″ (8″ auger) and 6″ (10″ & 13″ augers)}

Accessories & Options

	8″ Auger	10″ Auger	13″ Auger
1/4″ Gauge Flighting	Optional	Optional	Standard
Discharge Spout	Optional	Optional	Optional
Overflow Spout	Optional	Optional	Optional
Bucket Spout	Optional	Optional	Optional
4′ Screen – Hopper Incline Tube	Optional	Optional	–
Low Profile Twin Screw Hopper	–	Optional	Standard
Power Rotation for Hopper	–	Optional	Optional
Side Drive Kit*	Optional	Optional	Optional

_{^{* Puts tractor at 90° to auger for more hopper swing.}}

Electric hopper rotate kit: Moves the hopper into and out of loading position. Optional on 10” and 13” augers.

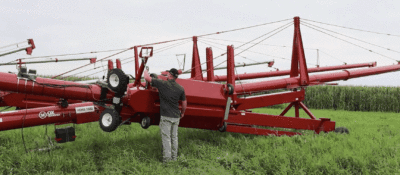

Electric Rotate Kit

Option on 10" and 13" HOSS Portable Augers

Designed for effortless positioning, this kit allows you to rotate the swing hopper smoothly and precisely with minimal effort. Say goodbye to manual adjustments—this upgrade ensures quick, easy alignment, saving time and reducing strain during operation. A must-have for your HOSS Portable Auger!

Click the Video tab above to see the electric rotate in action.

Electric Hopper Lift Kit

Option on 10" and 13" HOSS Portable Augers

Our electric winch option allows you to effortlessly raise and lower the swing hopper with the push of a button. This kit includes both a corded remote and a wireless remote, giving you the flexibility to operate the winch however you prefer. Available for new and current 10 and 13″ HOSS Portable Augers.

The Sudenga HOSS Electric Hopper Winch Kit includes an electric winch with aircraft cable and clip, corded controls, one remote control and battery cables.

The optional Electric Rotate Kit for the swing hopper on the Hoss Portable Auger takes convenience and efficiency to the next level. Designed for effortless positioning, this feature allows you to rotate the swing hopper smoothly and precisely with minimal effort. Say goodbye to manual adjustments—this upgrade ensures quick, easy alignment, saving time and reducing strain during operation. A must-have for your HOSS Portable Auger!
